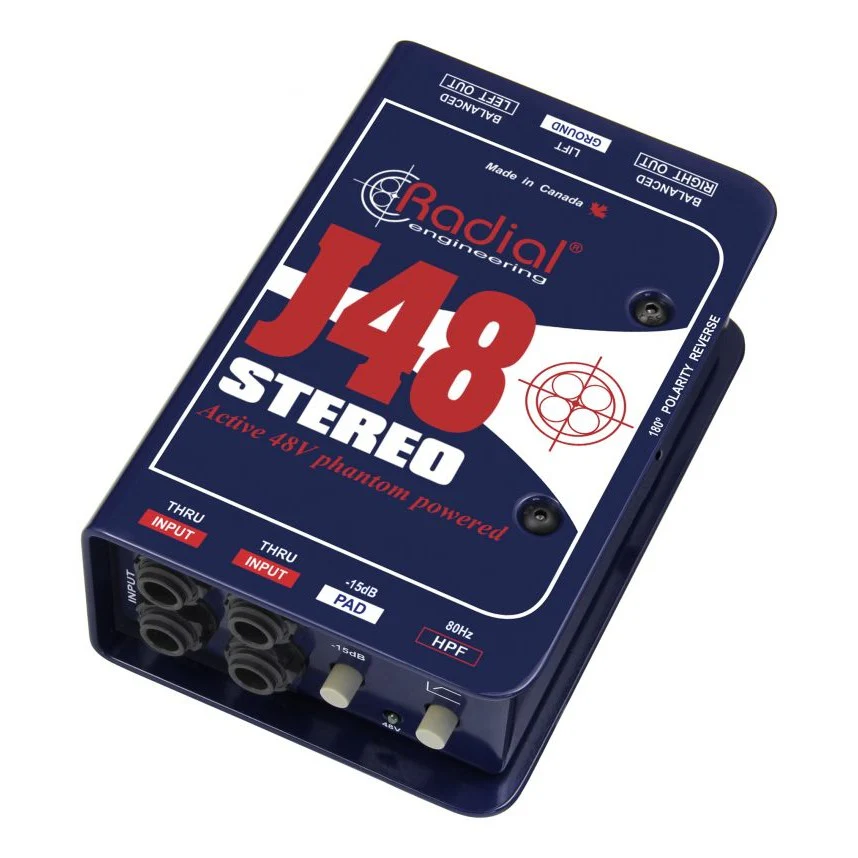

Radial - J48 Stereo R800 3002

Features
• Active direct box with extra headroom
• Compact two channel design
• Innovative ground lift circuit
• Radial tough design for touring
Benefits
• Amazing sound in a compact box
• Perfect for guitar, bass or other instruments
• Eliminates need for batteries
• Compact design takes up less space
Cool stuff
• Active design will not load down pickups
• Higher output compared to other DIs
• Will not pollute land fill sites with old batteries
• Low cut filter cleans up the mix

Specifications

Audio circuit type: Proprietary analog circuit with low-noise op-amp
Number of channels: 2
Frequency response: 20Hz ~ 20kHz
Dynamic range: 109dB
Total harmonic distortion: 0.002% @ -5dBu
Intermodulation Distortion: 0.003% @ -3dBu
Phase Deviation: +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
Input Impedance: 220kΩ - ¼" input
Output Impedance: 600Ω - XLR output
Equivalent Input Noise: -103dBu
Noise: -99dB below 0dBu
Maximum Input: +10dBu
Features
Input pad, 180° polarity reverse, Ground lift, HPF
Input Connectors: 2x 1/4" in and thru
Output Connectors: 2x XLR
General
Construction: 14 gauge steel chassis and outer shell
Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
Power: 48V phantom - proprietary digital switching
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
