Ibanez - PNB14E - OPN : Open Pore Natural

Acoustic Bass Series

Specs:
- Body Shape: Parlor Body
- Top: Okoume Top
- Back & Sides: Okoume Back & Okoume Sides
- Neck: PNB / Maple Neck
- Fretboard: Laurel Fretboard
- Bridge: Laurel Bridge
- Inlay: White Dot Inlay
- Soundhole Rosette: Black & White Multi

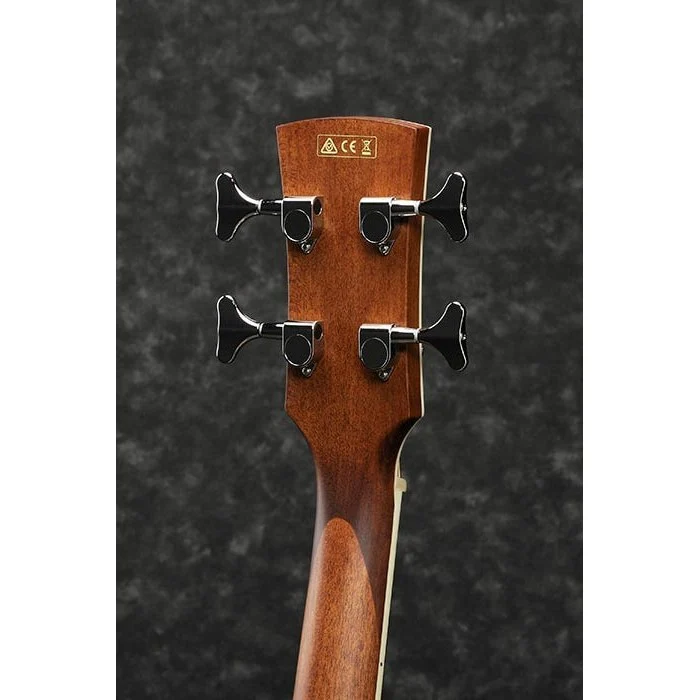

- Tuning Machine: Chrome Die-Cast Tuners
- Number Of Frets: 18
- Bridge Pins: Black with White Dot
- Strings: D'Addario® XTPBB190GS
- String Gauge: 0.037 / 0.050 / 0.062 / 0.090
- String Space: 19 mm
- Factory Tuning: 1G, 2D, 3A, 4E
- Pickup: Ibanez Undersaddle
- Preamp: Ibanez AEQ-2T Preamp w/ Onboard Tuner
- Output Jack: 1/4" Output
- Battery: 9 V x 1

Neck Dimensions:
- Scale: 628.65 mm / 24.8"
- Width at Nut: 43 mm
- Width at 14F: 55 mm
- Thickness at 1F: 21.5 mm
- Thickness at 7F: 23 mm
- Radius: 400 mmR

Body Dimensions:
- Length: 19 3/8"
- Width: 14"
- Max Depth: 4 1/4"

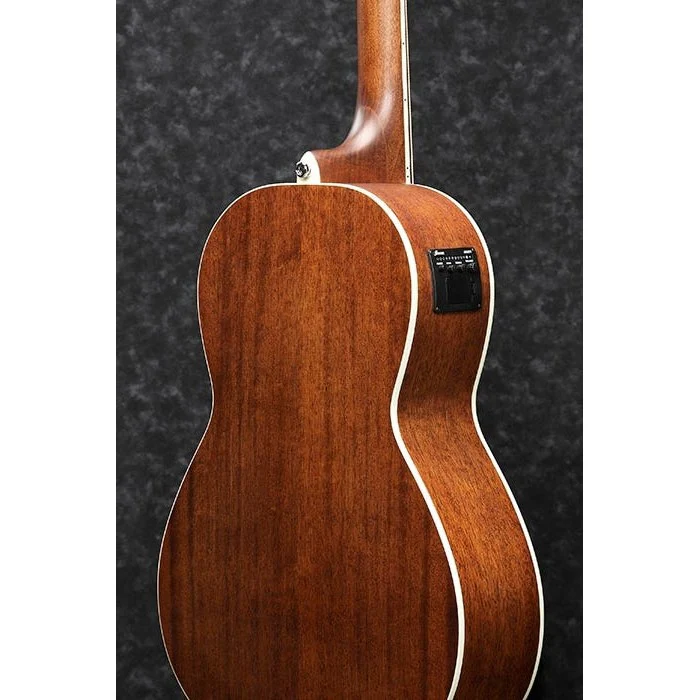

Preamp:
- The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
