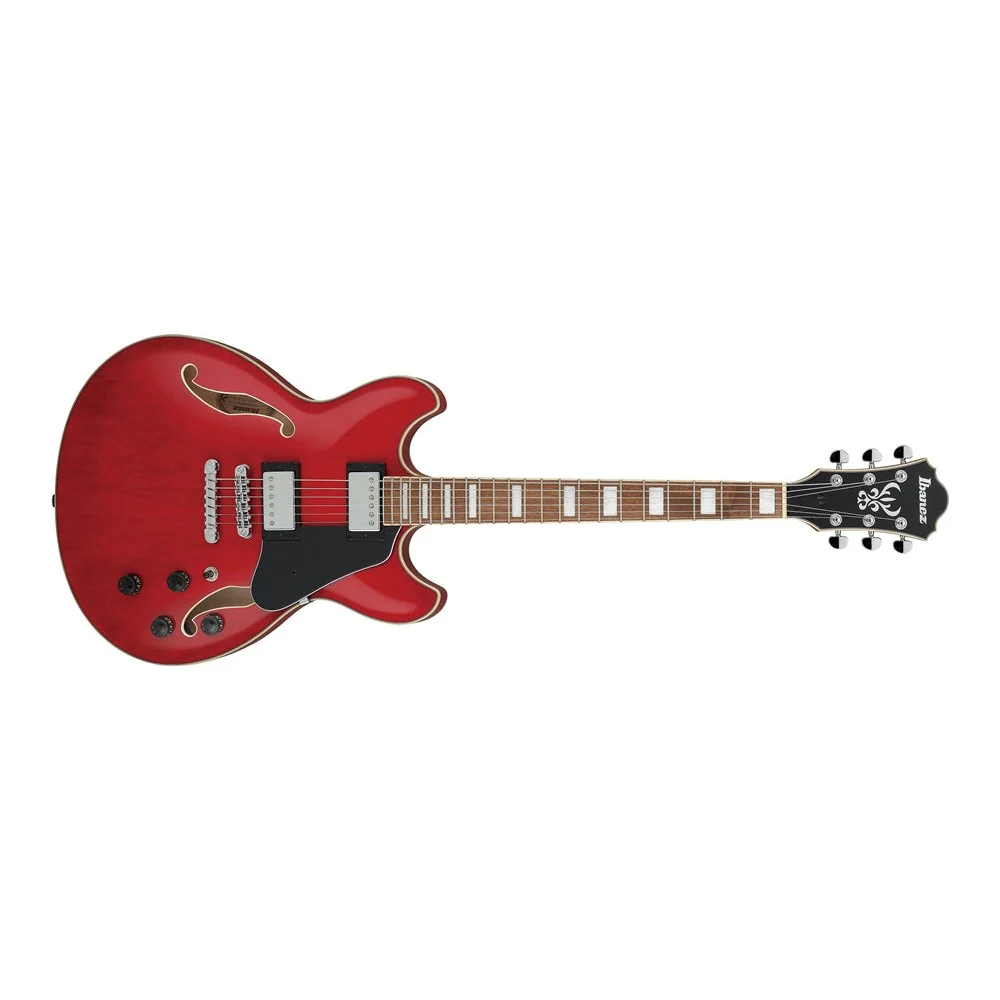

Ibanez - AS73 - TCD : Transparent Cherry Red

Specs:
- Neck Type: AS Artcore / Nyatoh / Set-In Neck
- Top / Back / Side: Linden Top / Linden Back / Linden Sides
- Fretboard: Bound Walnut Fretboard / Acrylic Block Inlay
- Fret: Medium Frets
- Number of Frets: 22
- Bridge: Gibraltar Performer Bridge
- String Space: 10.5 mm
- Tailpiece: Quik Change III Tailpiece
- Neck Pickup: Classic Elite (H) Neck Pickup (Passive/Ceramic)
- Bridge Pickup: Classic Elite (H) Bridge Pickup (Passive/Ceramic)
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
- String Gauge: 0.010 / 0.013 / 0.017 / 0.030 / 0.042 / 0.052
- Hardware Color: Chrome

Neck Dimensions:
- Scale: 628 mm
- Width at Nut: 43 mm
- Width at 22nd Fret: 57 mm
- Thickness at 1st Fret: 21 mm
- Thickness at 9th Fret: 24 mm
- Fingerboard Radius: 305 mmR

Body Dimensions:
- Body Length: 19 1/4"
- Maxiumum Body Width: 15 3/4"
- Maxiumum Body Depth: 2 5/8"

Controls:
- With the guitar held in the playing position, there are 2 knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are 2 more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a 3-way pickup selector switch near the neck volume knob.
