Electro-Voice - Evolve 30M Portable powered column system

    Mix your show like a pro

    Optimize every detail of your sound

    Room-filling coverage

    Super-quick setup

    Single-trip portability

    Available in black or white



Superior Electro-Voice sound quality coupled with the most complete feature set in its class – the perfect combination of performance and flexible functionality, in a very compact package



The EVOLVE 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It includes an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application (available via the Apple Store and on Google Play).



Specifications



Frequency response (-3 dB)1 51 Hz to 20 KHz

Frequency range (-10 dB)1 45 Hz to 20 KHz

Maximum SPL2 123 dB

Specifications

Coverage (H x V) 120° x 40°

Amplifier rating 1000 W

LF channel rating 500 W

HF channel rating 500 W

Crossover frequency 200 Hz

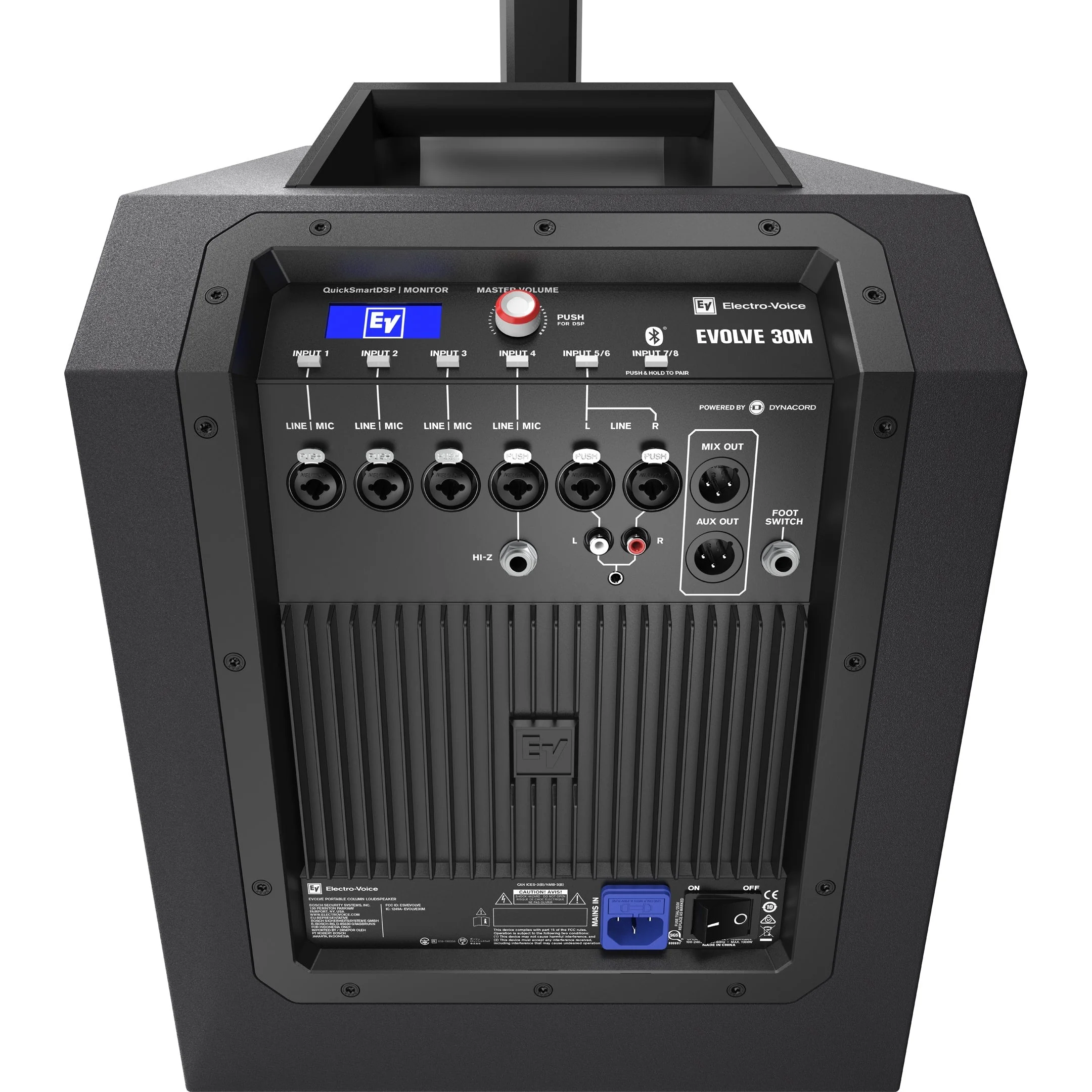

Connectors 4x XLR/TRS Combo Jack Line / Mic Input

1x 1/4" TRS HI-Z input

2x XLR/TRS Combo Jack for Stereo Line Input

1x Stereo RCA Input

1x 3.5 mm Stereo Input

1x Wireless Stereo Bluetooth® Audio Input

1x 1/4" Foot Switch Input

1x XLR MIX OUT Output

1x XLR AUX OUT Output

Enclosure Sub: 15 mm plywood

Column: Composite

Pole: Aluminum

Grille: Steel with black or white powder coat

Color: Black

Dimensions (HxWxD): mm (in) Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)

Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)

Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)

Power consumption3 100-240 V AC, 50-60 Hz, 1.5-0.6 A
