Introducing the Sheeran Looper +
Sheeran Looper + is the next–generation powerful and portable dual-track looper pedal. Looper + features Ed Sheeran’s looper workflow, stadium-grade die-cast aluminum pedals, and an intuitive 1.8” color screen with RGB LED loop status ring for heads up performance information.

Designed by Ed and his production team, Looper + utilizes custom DSP powered by HeadRush® that offers class-leading audio quality and stacks of connectivity options for performing on the street, in the studio, or up on stage! Looper + is the perfect compact looper whether you’re just starting out, or a professional musician looking to upgrade your existing pedalboard with an intuitive new looper pedal.

- Designed by Ed Sheeran and his production team
- Intuitive Sheeran Looper™ single- and dual-track workflow
- Featuring 4 looper modes: Single, Multi, Sync and Song
- Incredibly durable die-cast aluminum pedals, as used on Ed Sheeran’s stadium stage looper
- Custom DSP powered by HeadRush® with professional 32-bit audio
- Full-color 1.8” display, RGB LED loop status ring indicator, and LED input / output monitoring
- Save up to 128 loops with over 3 hours of audio to internal storage; import/export loops via USB
- Undo/redo, solo, fade, reverse, 1/2 speed, solo, and mute performance functions
- Combo XLR + 1/4” (6.35mm) mono input for connecting a standard dynamic microphone
- Stereo 1/4” (6.35mm) inputs for connecting guitars, basses, keyboards, or other instruments
- Stereo 1/4” (6.35mm) outputs can be run in stereo, mono, or split (loop/dry) output modes
- 1/4” (6.35mm) external footswitch input for connecting single or dual external footswitches
- 1/8” (3.5mm) MIDI input for external sync and external MIDI feature control (1/8” to 5-Pin adaptor included)
- Power via standard 9V 500mA (center-negative) power supply (not included), USB, or (4) AA batteries for street or stage performance
- Over 6 hours of battery life during normal use; (4) AA batteries (included)
- Record your performance to Mac/PC via the integrated USB audio interface

Two Pedals, Infinite Possibilities
Looper + features the exact same premium die-cast pedals found on Ed’s stadium stage looper. These pedals have been precision-engineered with optimal dimensions and spring pressure to be consistently easy-to-operate, helping you focus purely on your looping performance.
These ultra-durable pedals control the track record, overdub, playback and stop status of your loops, and feature hold functionality to undo/redo and clear your loops with ease. You can also connect an optional external single or dual footswitch and/or MIDI controller to Looper + for assignable feature control such as soloing and muting tracks, reverse and 1/2 speed playback, as well as fading loops in and out.

Different Looper Modes for Versatility
Looper + offers intuitive looping out-the-box with four different looper modes to achieve your ideal looping workflow.

Single Mode: 1 track with limitless layers for creating simple and powerful loops like Ed did when building his live show career
Multi Mode: 2 tracks with a global loop length for building tracks, just like Ed’s stadium stage looper workflow
Sync Mode: 2 tracks with different lengths that automatically stay in sync with each other
Song Mode: 2 tracks with same or different lengths that function as independent song sections (ex. verse, chorus, etc.)

Easily Save and Load Your Loops
Capture, save and share inspiration when it happens. Sheeran Looper + lets you store up to 128 loops with over 3 hours of total onboard storage time. When connected to a Mac or PC, the Looper + appears as a plug-and-play USB storage device, making it easy to transfer loops via drag-and-drop without having to install any extra software. Sharing your loops with the world has never been easier.

Over 6 Hours of Battery-Powered Looping On-The-Go
Take your looping skills on the road! Looper + can be powered for over 6 hours from a single set of four AA batteries - perfect for gigging and street performance. Alternatively, you can connect Looper + to a standard 9V 500mA (center-negative) pedalboard power supply and integrate it into your pedalboard. You can even power Looper + directly from the USB port for easy loop transfer with a Mac or PC.

Well Connected
Looper + features a mono combo XLR + 1/4-inch input for connecting a standard dynamic microphone for vocals, a stereo pair of 1/4” inputs for connecting an instrument like guitar or keyboard, a stereo pair of 1/4” assignable outputs, a 1/8” MIDI input (with included 5-pin adaptor) for external MIDI sync and feature control, 1/4” external single or dual footswitch input, and a USB port for recording, transferring loops and MIDI sync to a Mac/PC.

Record and Stream Via USB
Looper + makes it easy to reach a wider audience with your creations and performances. When connected to a Mac, or PC, Looper + simply functions as a 3-in / 2-out USB audio interface, making it easy to record using your favorite DAW, or to set up live streams and play to the world.

Top Panel:
Display: 1.8" color LCD display
Housing: Matte black powder coated steel chassis
Pedals: (2) die-cast aluminum pedals with titanium grey satin finish
Controls: 360° navigation wheel with push-to-enter and hold function with RGB LED ring indicator
Instrument input gain control knob with real-time LED input level meter
Microphone input gain control knob with real-time LED input level meter
Main volume control knob with real-time LED output level meter

Real Panel:
I/O: Combo XLR+1/4” (6.35 mm) balanced input (mono)
(2) 1/4” (6.35 mm) balanced inputs (stereo pair)
1/4" (6.35 mm) single or dual footswitch input (TS or TRS)
(2) 1/4” (6.35 mm) balanced outputs (stereo pair)
1/8” (3.5 mm) MIDI Input (5-Pin to 1/8” adapter included)
USB Type-B port
Power adapter input with power switch and cable restraint

Power Specifications:
DC Power Input: 9V DC, 500mA, Center-Negative, 2.1mm Barrel (adapter not included)
USB Power Input: Yes
Battery Power Type: 4 x AA (Alkaline) (Included)
Est. Battery Life: Over 6 Hours (may vary based on conditions of use/battery brand)

Looping Specifications:
Looper Modes: 4 (Single, Multi, Song, Sync)
Looping Functions: Record, Overdub, Play, Stop, Undo/Redo, Clear Track, Clear All, Reverse, 1/2 Speed, Fade In/Out, Solo, Mute
Max # of Looper Tracks: 2
Max Loop Length: 1.5 Hours
Max Overdub Layers Per Loop: Unlimited Layers
Max Overdub Time Per Loop: 30 Minutes
Loop File Storage Format: .WAV (32-Bit PCM, 44.1 kHz)
Max # of Stored Loops: 128
Onboard Storage Time: Over 3 Hours
Onboard Storage Space: ~4.1GB

Other Features and Functionality:
External Pedal Assignment: Yes (for Single or Dual Footswitch)
USB Transfer Mode: Yes
USB Audio Interface Mode: Yes
Control from External MIDI Devices: Yes
MIDI Clock Sync: Receive
Audio Routing Customization: Stereo, Mono or Split (Loop/Dry)

Audio Processing Specifications:
Processor Type: Custom single-core HeadRush(R) DSP
System Audio Bit Rate: 32-Bit PCM
System Audio Sample Depth: 44.1 kHz
A/D D/A Conversion: 24-Bit

USB Recording Specifications:
Bit Rate: 24-Bit
Available Sample Depths: 44.1 kHz
Input Channels: 2
Output Channels: 2

USB Loop Import Specifications:
Supported File Types: Stereo .WAV
Supported Bit Rates: 16-bit PCM, 24-bit PCM, 32-bit PCM, or 32-Bit Float
Supported Sample Rates: 44.1 kHz

Dimensions and Weight:
Pedal Dimensions (WXDXH): 8.52” x 6.24” x 3” (21.64 x 15.85 x 7.62 cm)
Pedal Weight: 3.75 lbs. (1.7 kg)
Box Dimensions (WXDXH): 12” x 9.24” x 6.12” (30.48 x 23.47 x 15.55 cm)
Box Weight: 5.51 lbs. (2.5 kg)

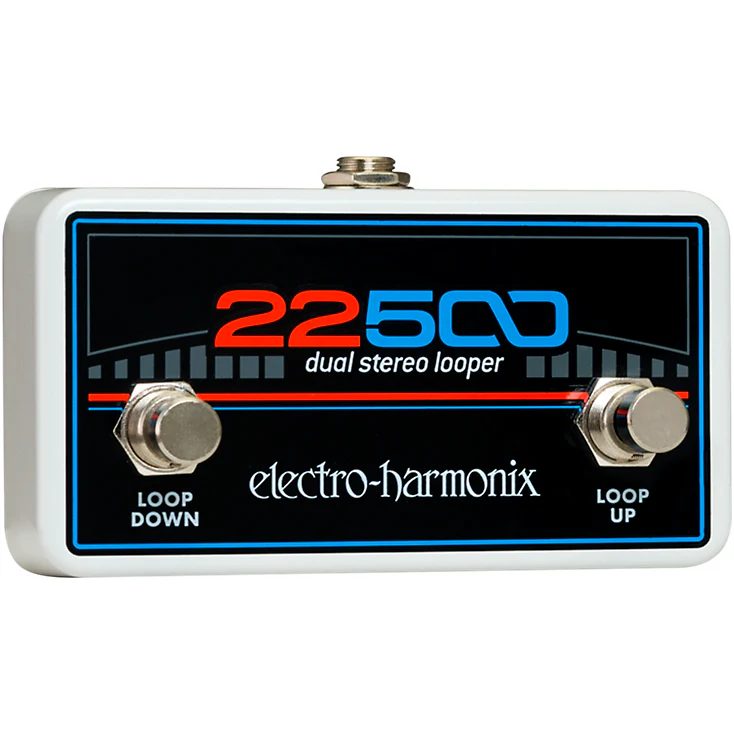

Electro-Harmonix - 22500 Looper Stereo
