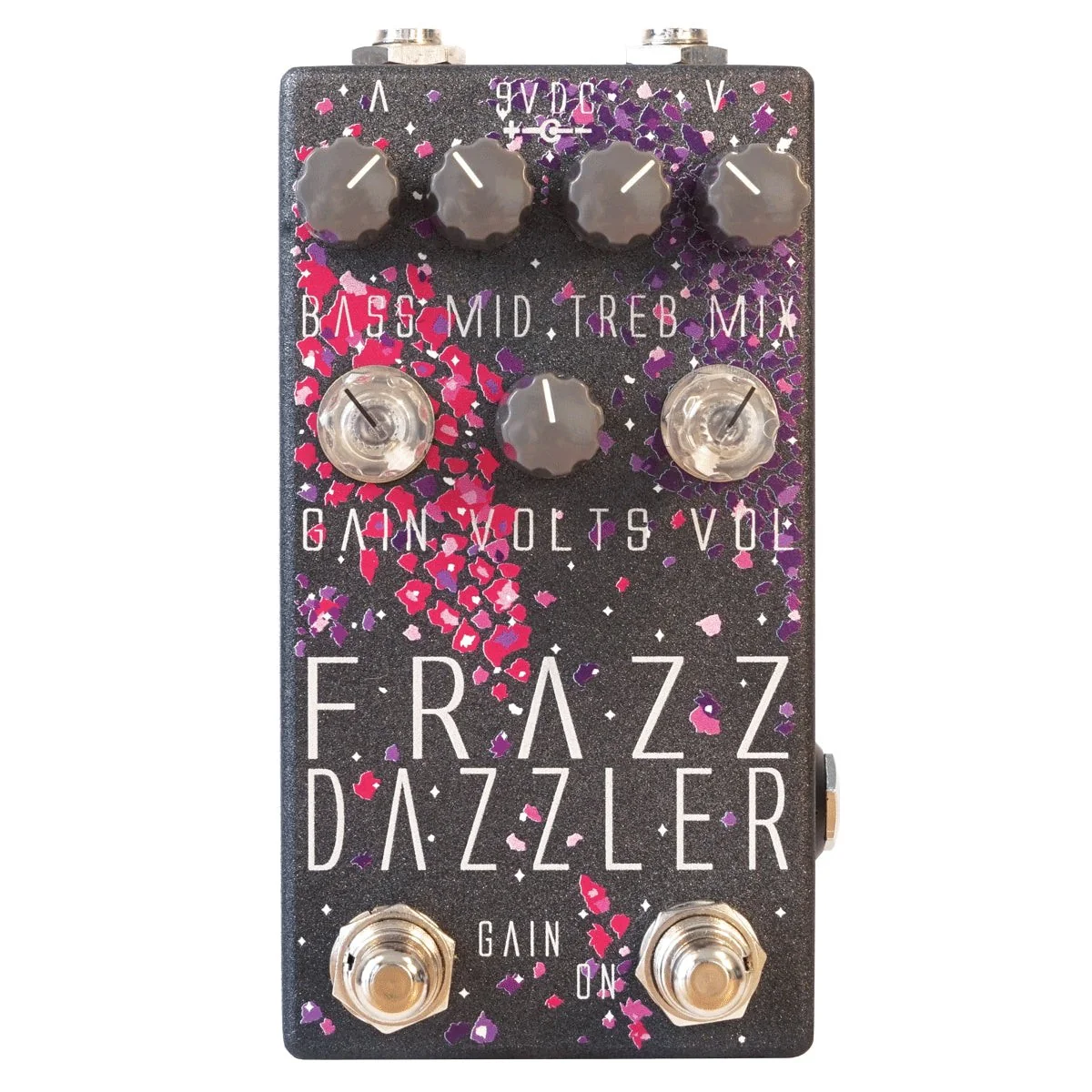

Dr Scientist - Frazz Dazzler Fuzz

The Frazz Dazzler is a dual-channel, aggressive fuzz with a wide gain range and a full 3-band equalizer. The Frazz uses a unique circuit topology for extremely high gain even on the low gain channel. The high gain channel offers over-the-top saturation with a built-in noise gate. Both channels make use of a variable regulator for a powerful voltage starve system resulting in a range of sounds from lower headroom/more clipping to glitchy, sub-octave tones. Like all Dr. Scientist pedals, the Frazz Dazzler can be used with guitar, bass, synths, and many other instruments. Features Low and High gain fuzz channels with LED indicator selectable with left foot switch Uniquely designed circuit Active 3-Band EQ Voltage starve control High quality analog signal path Premium parts and components throughout True Bypass with soft touch relay switching Full control over wet/dry mix Expression pedal control over Mix Buffered Input and Output Top mounted audio and power jacks Designed and handmade in B.C., Canada Knobs BASS – Adjust the low frequencies MID – Adjust the midrange frequencies TREB – Adjust the high frequencies MIX – Adjusts the balance between the input signal (Dry) and the effect (Wet) signal GAIN – Increases the amount of distortion VOLTS – Lowers the overall headroom. Produces glitchy, suboctave sounds at the lowest settings. Lower threshold adjustable with internal trim pot. VOL – Controls the effect (Wet) signal level Gain Footswitch – Toggles between low- and high-gain channels Bypass – Engage or disengage the effect Operation 500kΩ/1kΩ 100mA @ 9VDC, 2.1mm centre negative plug True Bypass with soft touch relay switching Additional Specs Mono input, Mono output, TRS Expression input Treble Control: +/-15dB 2nd Order peaking filter centred at 3kHz Mid Control: +/-15dB 2nd Order peaking filter centred at 800Hz Bass Control: +/-15dB 2nd Order peaking filter centred at 100Hz Exp Input: TRS cable, 10kΩ to 100kΩ resistance Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
